Water Flow Simulation Tool

The ultimate tool for simulating and optimizing water management systems.

Water Balancing

Gravity Flow Calculations

Understanding water flow through gravity from reservoirs or storage tanks to utilities is crucial for optimizing water distribution. Our calculations ensure efficient usage by analyzing factors such as height difference, pipe diameter, and flow rate.

Optimized Gravity Flow Design
Pipe Sizing & Flow Rate Estimation
Pressure Loss & Efficiency Analysis

How It Works

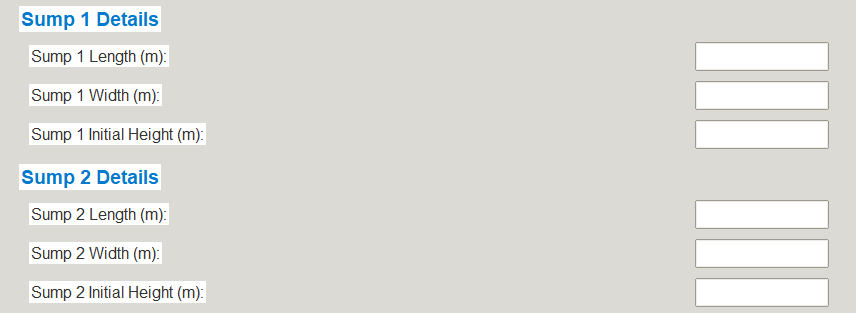

Step 1: Input Dimensions

Enter the dimensions for the reservoir, sump1, and sump2 along with initial water levels.

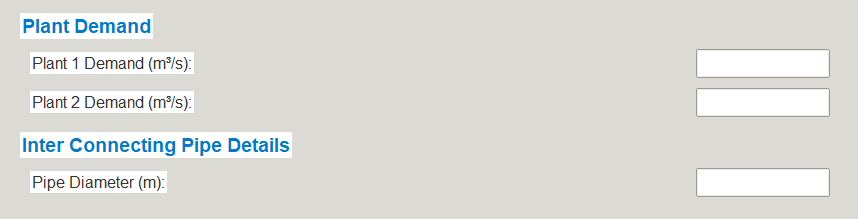

Step 2: Configure Plant Demand

Set the plant water demand and pipe diameter for accurate simulations.

Step 3: Run Simulation

Click "Run Simulation" to calculate water levels dynamically over 14400 seconds.

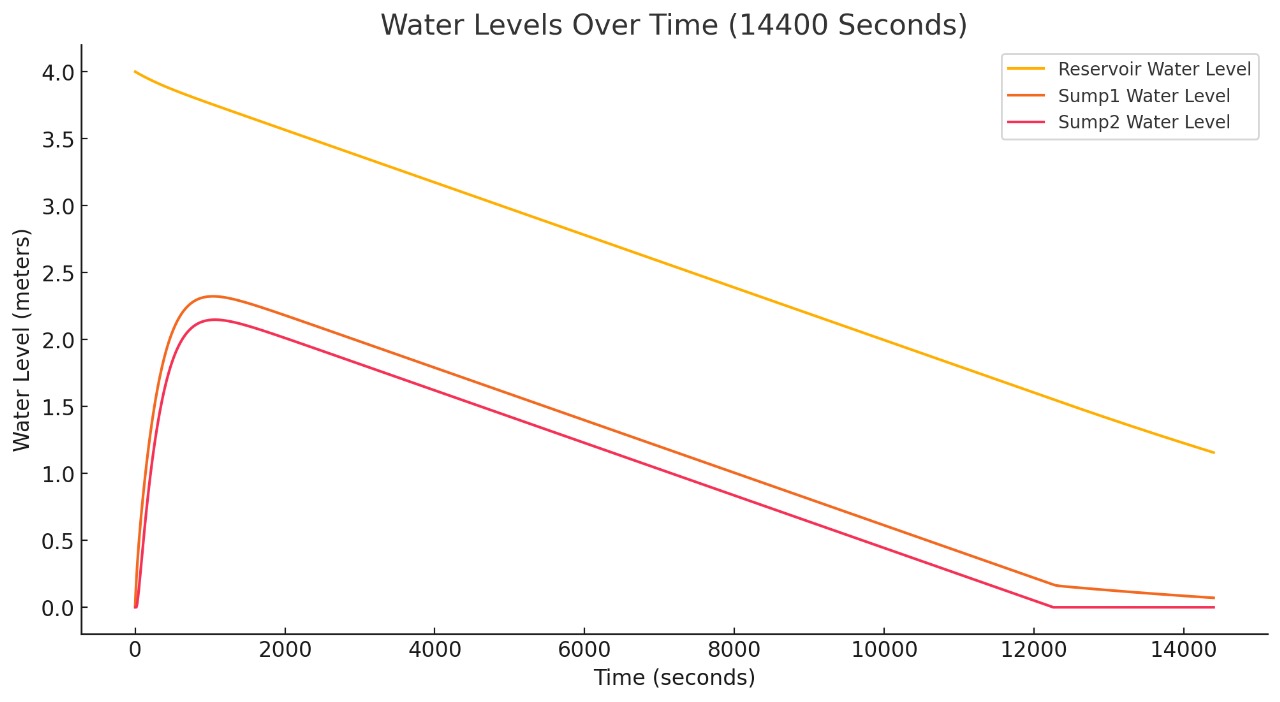

Step 4: Analyze Results

Visualize the water levels for reservoir, sump1, and sump2 in a detailed graphical format.
